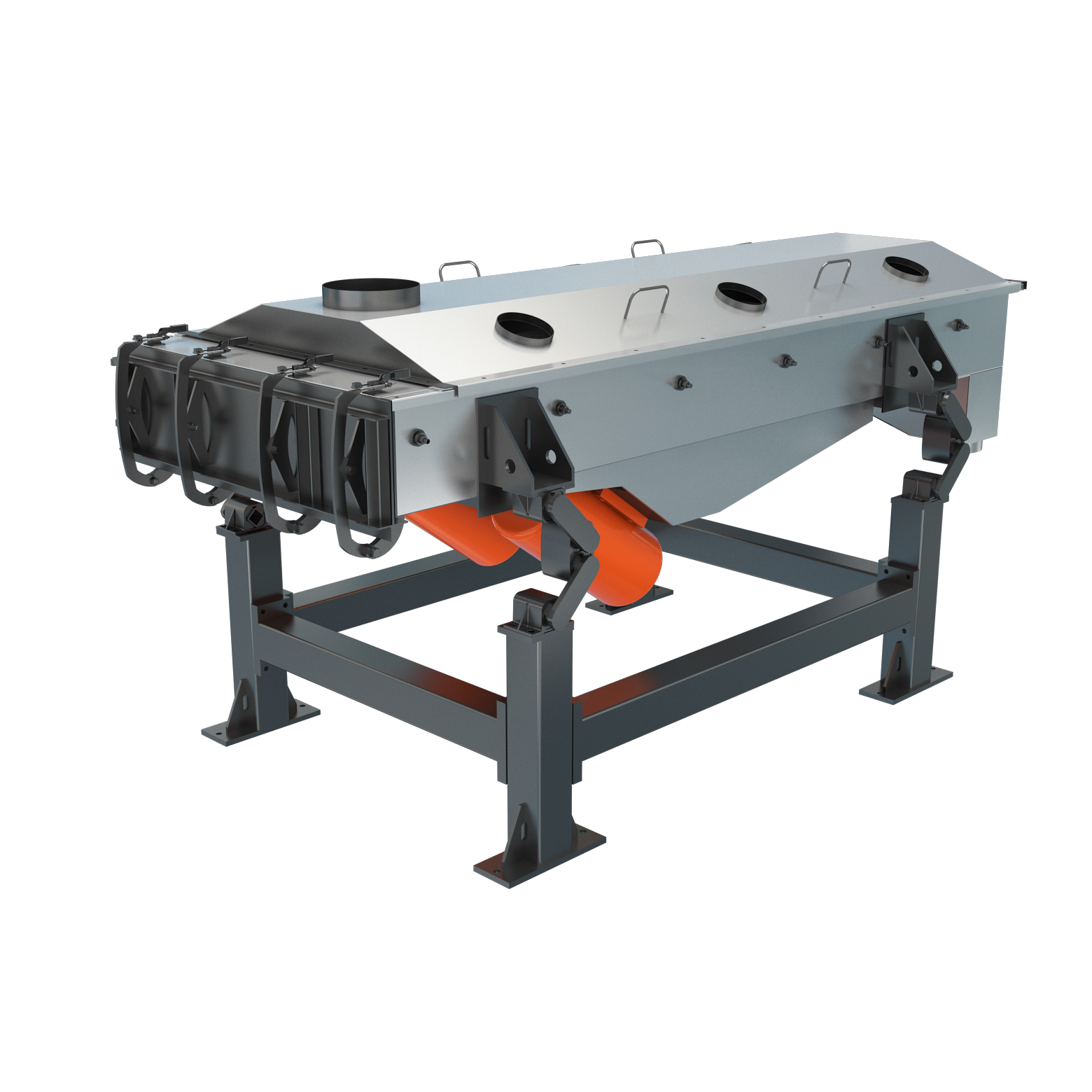

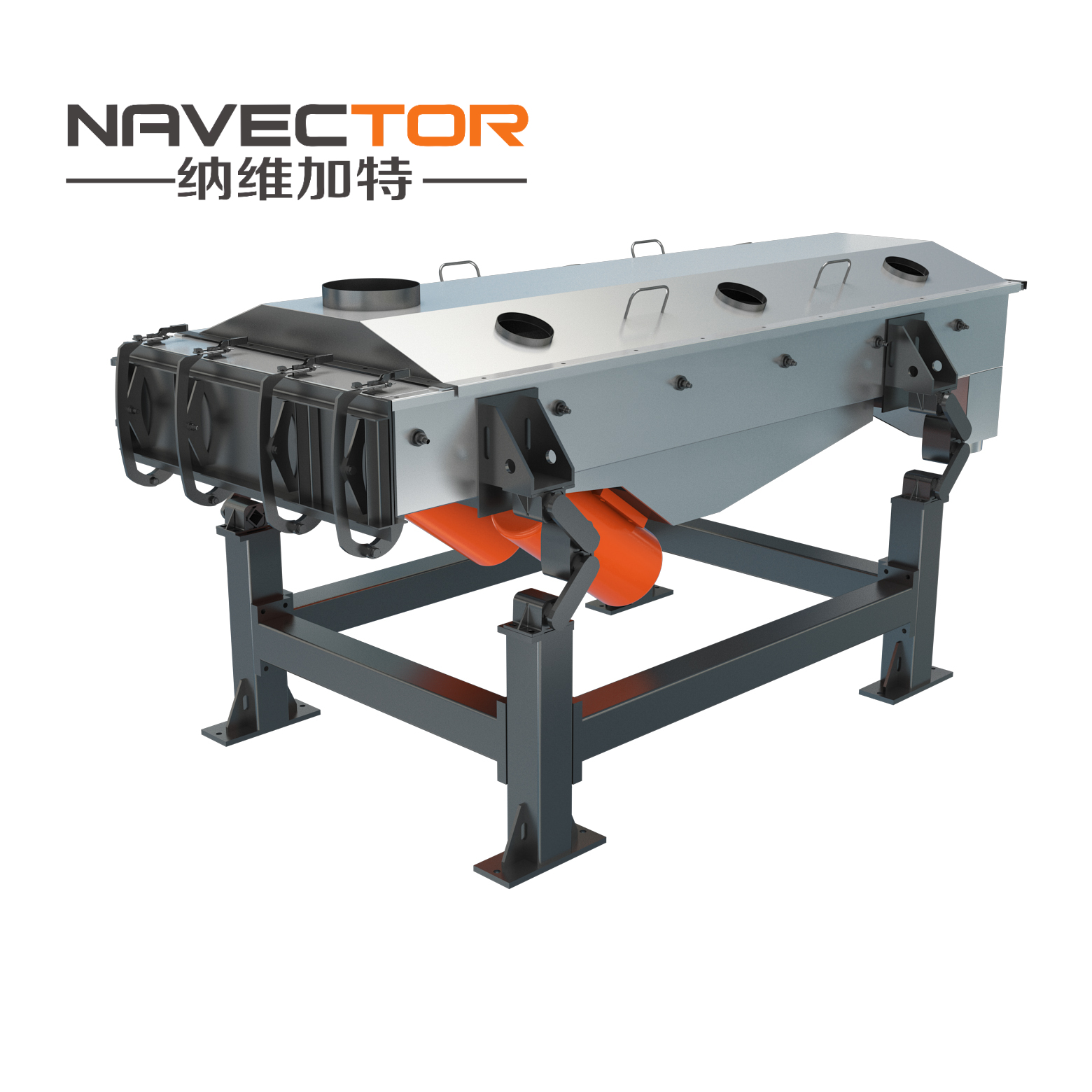

Universal Motion Rectangular Separators

Universal Motion Rectangular Separators

Introduction

• Navector Universal Motion Rectangular Separators are driven by two contra-rotating unbalance motors. They utilise a linear motion directed to the plant's center of gravity.
• The throwing angle of the screen results from its design and process engineering and is adjustable via the masses of the unbalance motors.

• The screen box absorbs all the static and dynamic powers and supports itself at four points against the substructure.
• The unbalance motors are located on the driving axle above the screen deck. The fact that the screen ascends before throwing guarantees an optimum dewatering of the material.

Driven by two contra-rotating vibrators the linear action produces a positive conveying action capable of vibrating larger and inclined screens suitable for wet and difficult materials. Typical applications include Grading, Washing and De-watering.

• Screen sizes up to 5m long x 2m wide
• Mild or stainless steel construction
• Open, semi or fully enclosed using bolt-on or quick release covers
• Single or multiple decks
• Screen media options include: woven wire, perforated plate, polyurethane, rubber, wedge wire, bars, fingers or tines
• Automatic mesh cleaning systems
• High temperature or ATEX applications
• Lined with hardened steel, stainless steel, plastic, rubber or other specialist coatings
