medium | argon | Oxygen content after purification | ≤5PPM |
internet traffic | ≥ 1500m³/h | Oil content | ≤0.01ppm |
Initial pressure of recovered gas | 0.010-0.015Mpa | Dew point temperature | ≤-65°C |
Pressure after pressurization | ≥6MPa | Media filtration accuracy | <0.1um |
Overall recycling rate | ≥99% | Total power of equipment | 470KW |

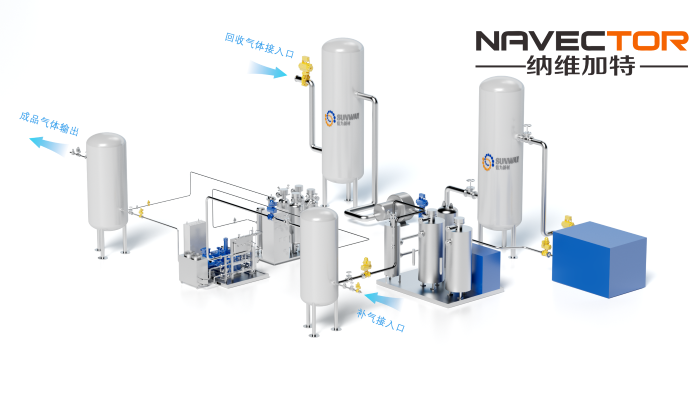

Main configuration | quantity | notes |
Inlet dust filtration system | 1 set | Filter fine dust in the system with a filtration accuracy of<0.1um |
Low pressure buffer storage tank | 1 piece | Volume 15m3, working pressure 1MPa |
Variable frequency screw compressor | 1 unit | oil |
Argon drying system | 1 group | Drying treatment of gases |
Argon deoxygenation system | 1 group | Purifying a small amount of oxygen in argon gas |
Medium pressure buffer storage tank | 1 piece | Volume: 5m3, working pressure: 1.6MPa |
Liquid driven piston compressor | 1 unit | 220KW, hydraulic driven, oil-free lubrication |
High pressure buffer storage tank | 1 piece | Volume: 5m3, working pressure: 6.5Mpa |
water chiller | 1 unit | Used for cooling the system |
