Ultrasonic Welding machine for Face Masks

Face masks Ultrasonic welding system

Ultrasonic system 20Khz 2000W for earloop welding
Ultrasonic system 15Khz 2600W for folded V and material layers welding

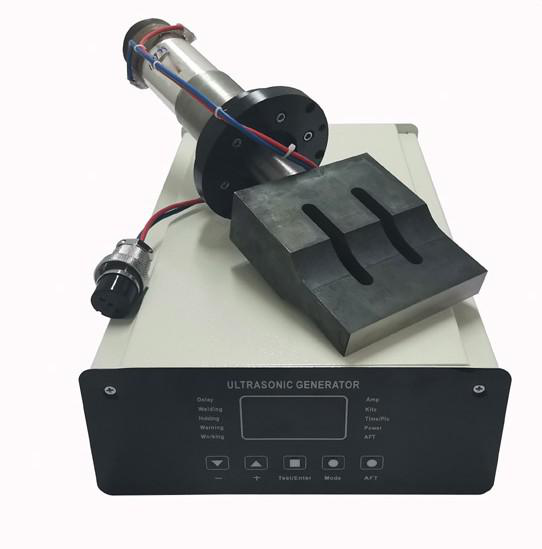

Ultrasonic Welding System 20khz 2000w

Intelligent Frequency Automatic Tracking (ultrasonic generator can track ultrasonic transducer’s

frequency by itself. More easy to operate)

More stable ultrasonic energy output of ultrasonic transducer with different size horn

Ultrasonic Welding System Application:

Paper Cup Making Machine,
Nonwoven Machinery,
such as Nonwoven Bag Making Machine
Nonwoven Surgical Cap Making Machine
NonwovenBouffant Cap Making Machine,
Nonwoven Shoe Cover Making Machine,
Nonwoven Ultrasonic Plastic Welding Machine
Ultrasonic Lace machine,
Three Layers Bag Making Machines
Plastic Bag Making Machine, Stationery,
Machinery, Automation Equipment, etc

20khz 2000W Ultrasonic Welding for masks

Mask Type	Welding Position	Working Type	Recommended QTY
Flat Make	Long Side	20KHZ continuous working	1 set
	Short Side	20KHZ continuous working	1 set
	Ear Loop	20KHZ intermittent working	4 sets for Fully automatic mask machine
	Nose Bridge	20KHZ continuous working	1 set
	Vent hole	20KHZ continuous working	1 set
	Ear loop	20KHZ intermittent working	2 sets

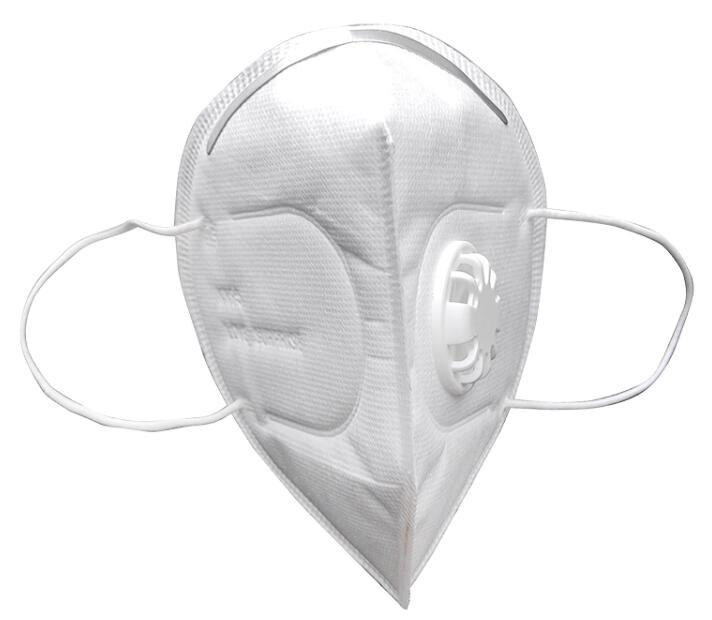

	Folded V	20KHZ continuous working Or 15khz intermittent working	1 set

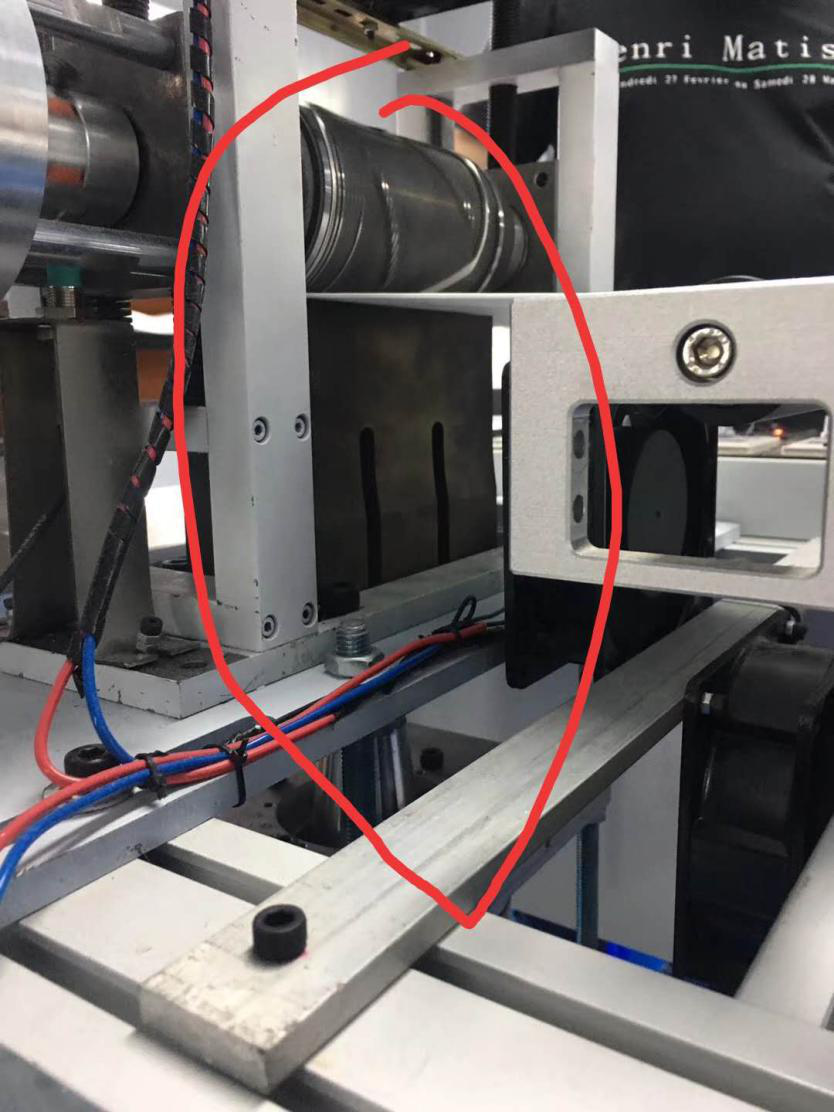

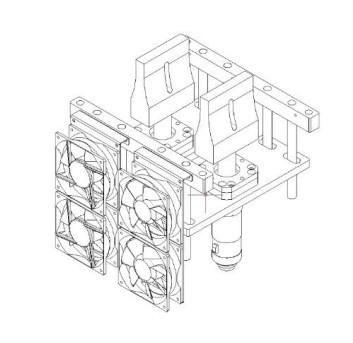

Ultrasonic Welding System Install showing

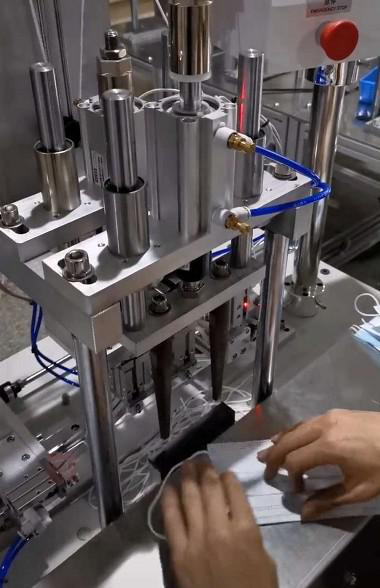

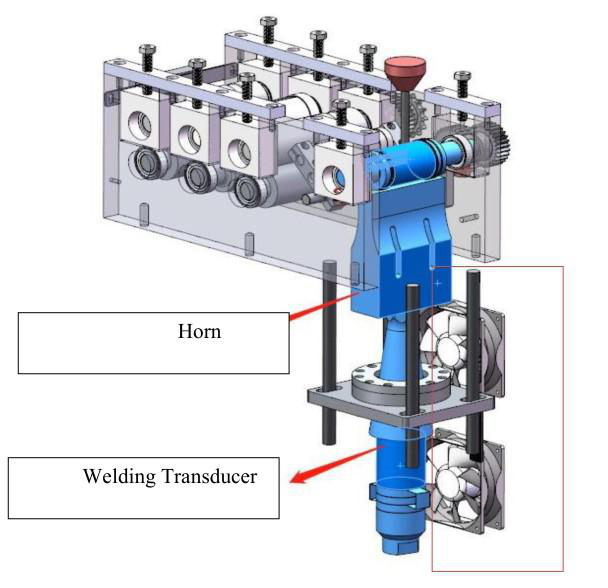

Ear Loop Ultrasonic Welding (Automatic or Semi-automatic Machine) Ultrasonic Welding below roller

Elastic band ultrasonic Welding

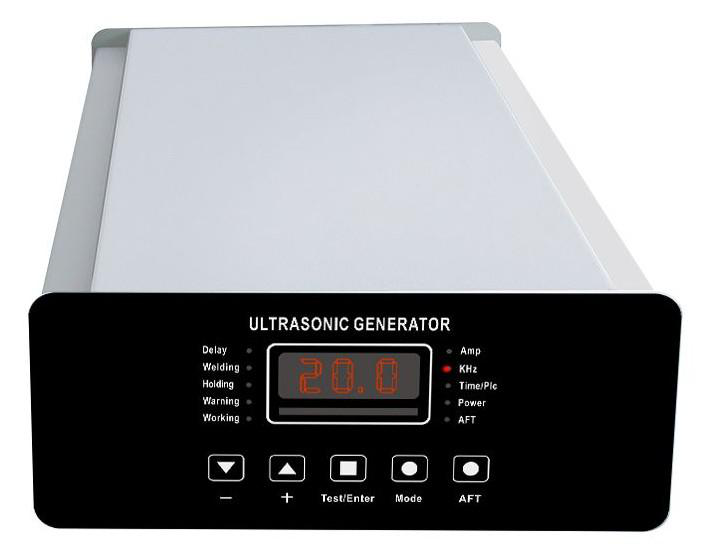

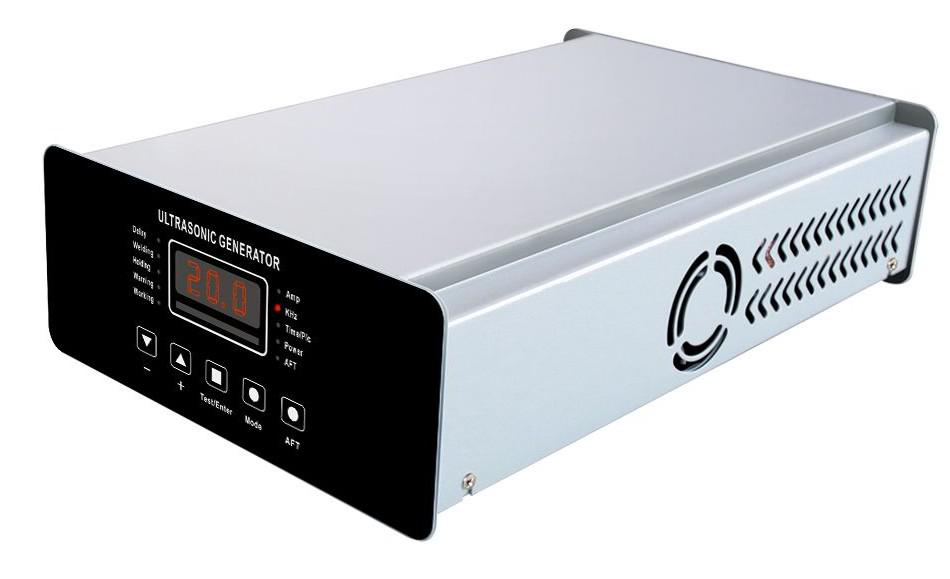

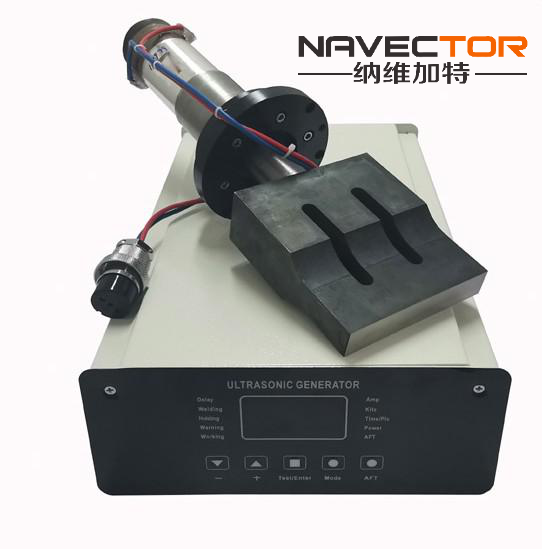

1. Ultrasonic Welding Generator 20khz 2000w

Our company's own research and development, design, production ultrasonic generator’s functions.

1. Automatic Frequency Tracking: when the ultrasonic transducer work after some time. It will generate heat. the ultrasonic transducer’s frequency will be changed according to the temperature.our generator can track the transducer’s frequency by itself. And let it to match with ultrasonic transducer.

2. Digital Amplitude Setting: allows users to set accurate amplitudes according to application.
which provides a larger range and repeatability of settings than analog systems. The amplitude can be adjusted in a large range: 20% ~ 100% continuously adjustable, which is different from the shortcomings of traditional generators that are difficult to work with low amplitude
3. Intelligent Fan Control: When the temperature is low, the fan starts following the sound wave output. If there is not sound wave output within 30 seconds, the fan stops to prevent the inhalation of excessive dust and improve the reliability of the device. When the high temperature exceeds 45°C, the fan will continue to work to cool down. When the temperature exceeds 80°C, the device will provide over-temperature protection and prompt on the screen.

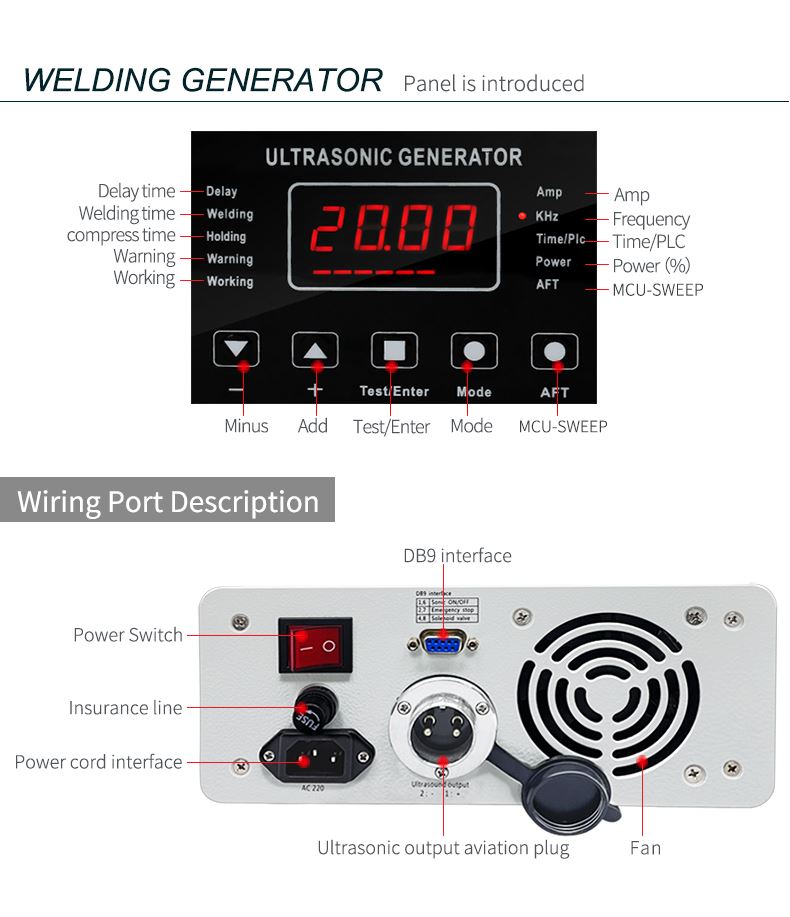

4. LED and key operation interface are stable and reliable Display the working current, frequency,time,amplitude.
5. Inverter tube overcurrent & Inverter drive undervoltage & Load overvoltage & Load overcurrent &Load overpower & The load impedance is abnormal & Over temperature & Overcurrent of external devices
