Navector Pharmaceutical Filter/Dryers were designed for the aseptic batch filtration and washing of pharmaceutical solids and for their further de-watering and drying. All processes are completed within the sealed chamber without any need for intermediate transfer, handling, or exposure to the external environment.
The Navector Pharmaceutical Filter/Dryers uses gentle, Vibro-Energy motion to promote fluid separation at low differential pressures. The motion is then combined with nitrogen purge to fluidize the bed of solids for gentle, efficient drying. No mechanical stirring devices are required. Solids are generally discharged as a flow-able powder with consistent dryness and free of lumps.
Feature
•The whole machine is 316L, electrolytic polishing is better than Ra＜0.4
•Explosion-proof motor
•Customized control PLC
• Two-layer, three-layer, and five-layer filter (filters imported from Japan)
• Welding, bonding and curing, the diamond filter increases the hardness and durability
•Vacuum up to 0.2MPa
•Fully sealed design to meet aseptic requirements
•Can realize CIP/SIP
• Temperature controllable
Process

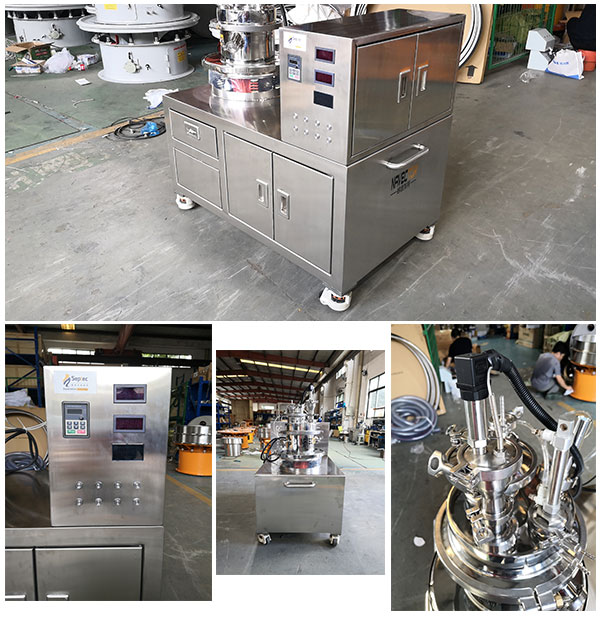

Photos
