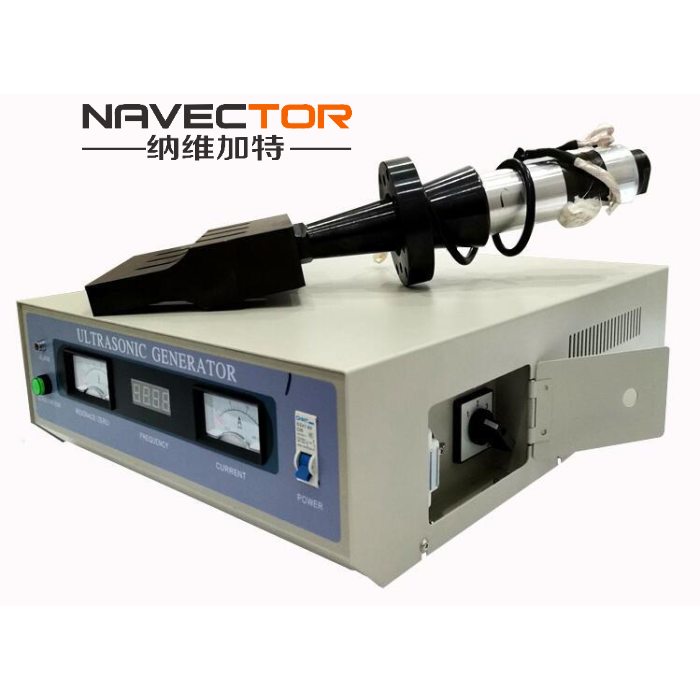

Ultrasonic Welding machine 15Khz 2600W

Ultrasonic Welding System 15khz 2600w for Face masks welding

Especially for folded V and material layers welding

More stable ultrasonic energy output of ultrasonic transducer with different size horn

15khz Ultrasonic Welding Solutions

Horn size:

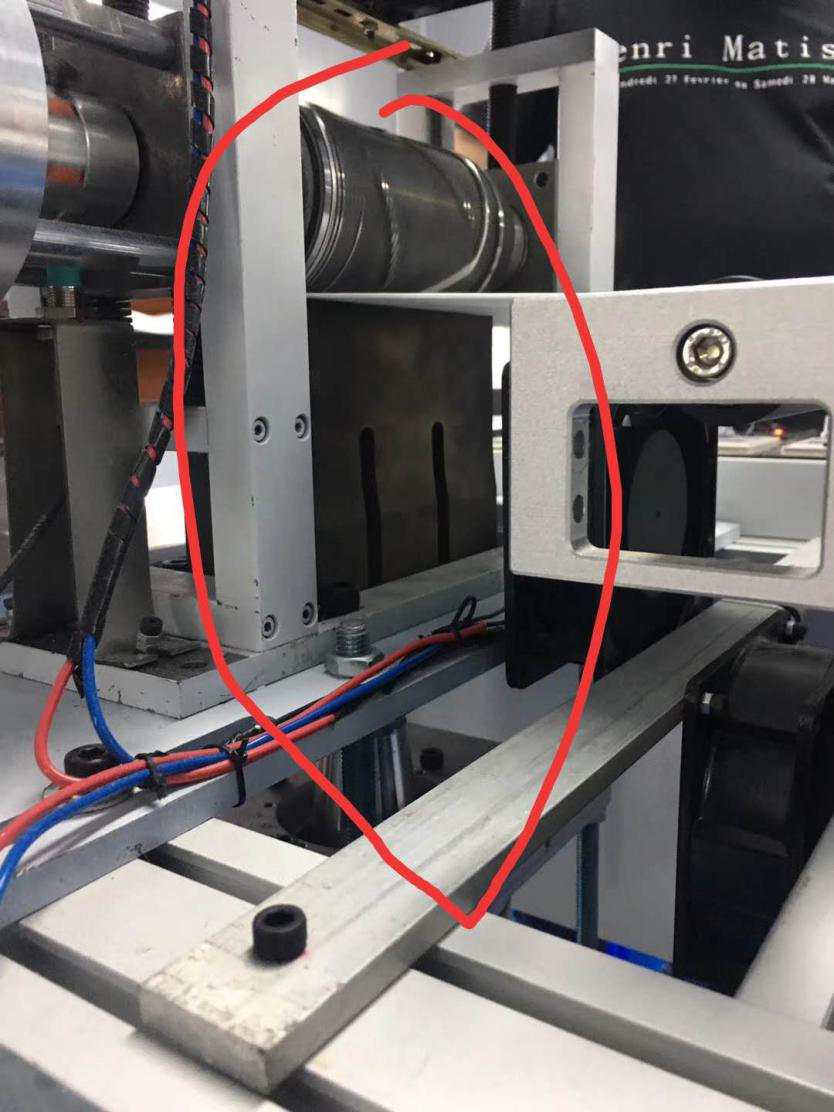

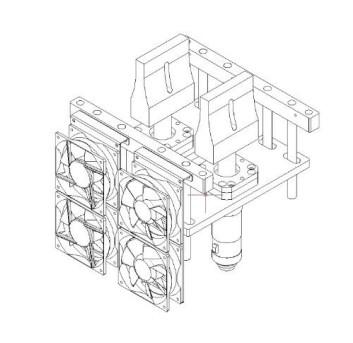

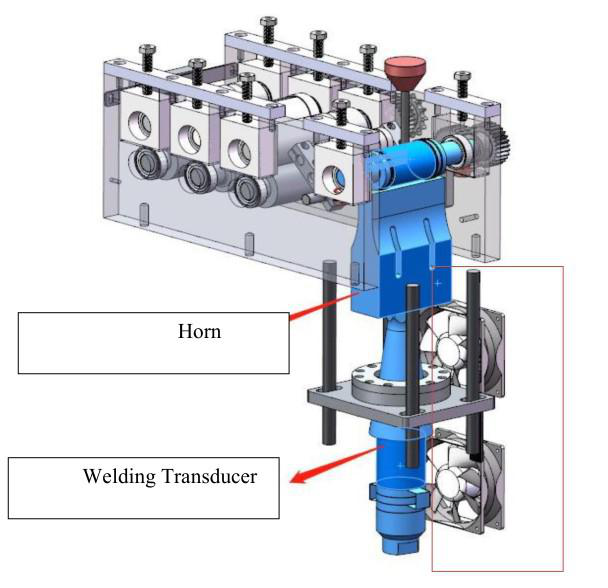

Installation Showing

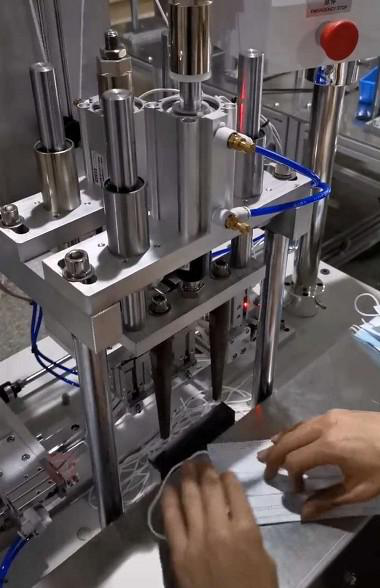

Ear Loop Welding(Automatic or Semi-automatic machine)	Ultrasonic Welding below roller

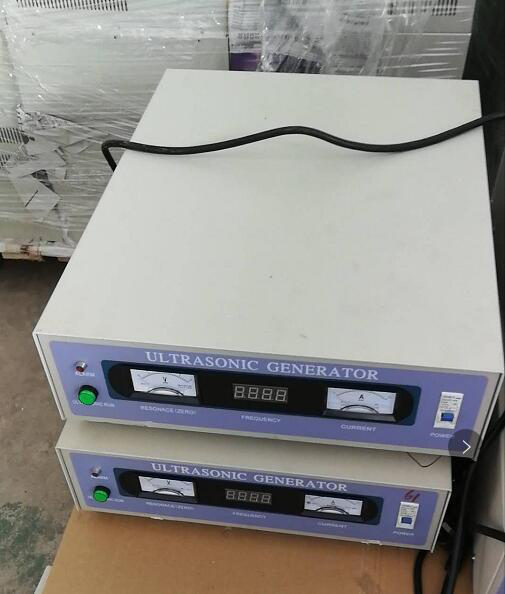

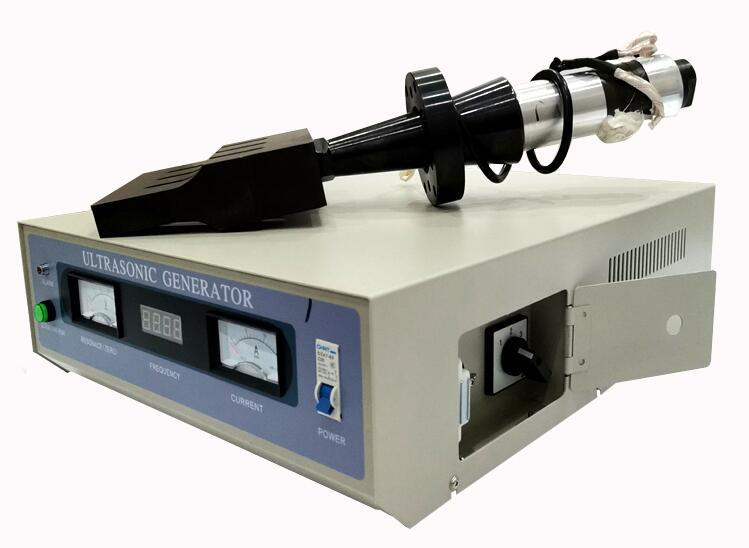

Ultrasonic Welding Generator 20khz 2000w

Our company's own research and development,design, production ultrasonic generator’s functions.

15k, 2600W

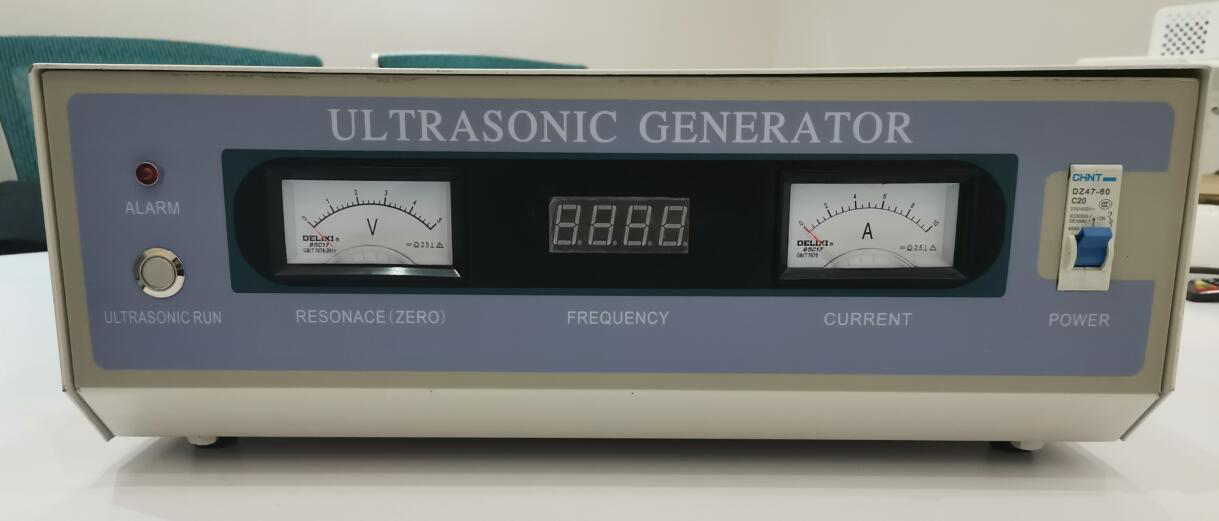

Main Functions of Ultrasonic Generator

Automatic Frequency Tracking: when the ultrasonic transducer work after some time. It will generate heat. the ultrasonic transducer’s frequency will be changed according to the temperature.our generator can track the transducer’s frequency by itself. And let it to match with ultrasonic transducer.
Amplitude Setting: allows users to set accurate amplitudes according to application. which provides a larger range and repeatability of settings than analog systems. The amplitude can be adjusted in a large range: 20% ~ 100% continuously adjustable, which is different from the shortcomings of traditional generators that are difficult to work with low amplitude.

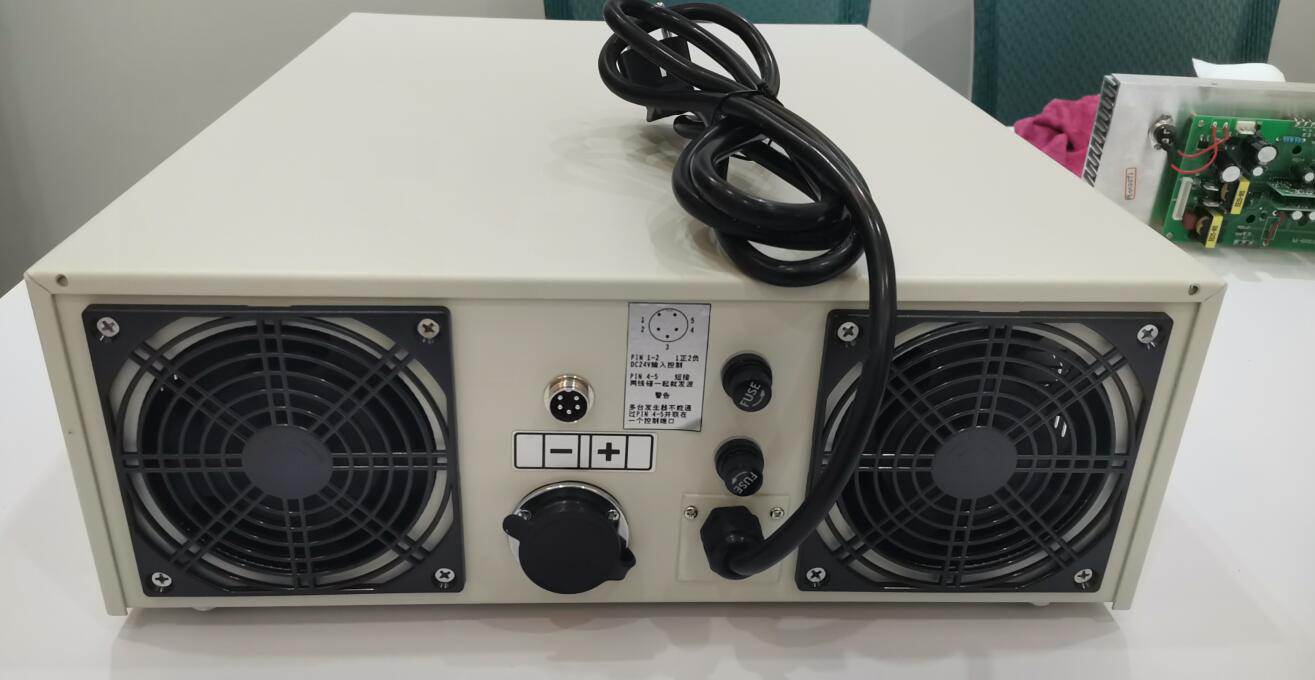

Fan Control: When the temperature is low, the fan starts following the sound wave output. If there is not sound wave output within 30 seconds, the fan stops to prevent the inhalation of excessive dust and improve the reliability of the device. When the high temperature exceeds 45°C, the fan will continue to work to cool down. When the temperature exceeds 80°C, the device will provide over-temperature protection and prompt on the screen
Key operation interface are stable and reliable display the working current, frequency,amplitude.
Inverter tube overcurrent & Inverter drive undervoltage & Load overvoltage & Load overcurrent &Load overpower & The load impedance is abnormal & Over temperature & Overcurrent of external devices

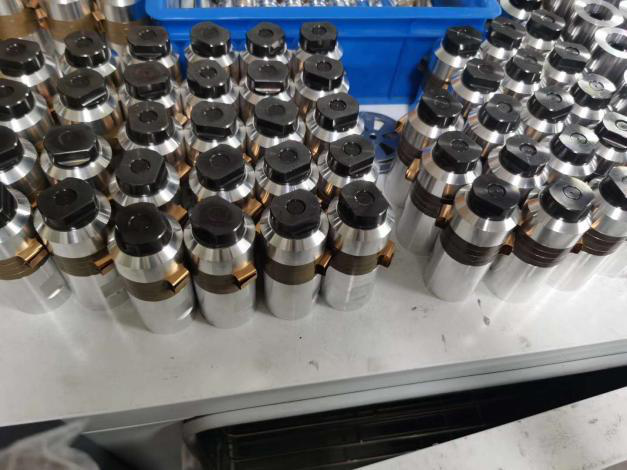

Ultrasonic Transducer 15khz 2600w

Funtions:

High Performance: high mechanical Q value, the conversion efficiency of electroacoustic up to more than 90%.
Large Amplitude: high seismic velocity of the oscillator, with an amplitude increase of more than 50% compared with that of the magnetostrictive transducer.
Heat Resistance: high quality material, good heat resistance, low resonant impedance, low calorific value.
Strong Structure: high quality standard steel bolts, high reliability.

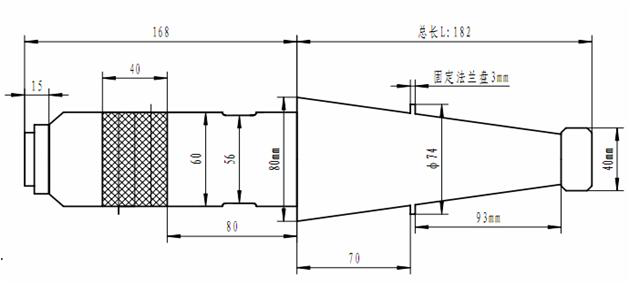

Ultrasonic Transducer with booster Size

Ultrasonic transducer Specification

Type	Frequency	Power	Resistance	Piezo	Capacity	Material
QXWT2600	15Khz	2600W	≤20ohm	Pzt8	12000±2%	Aluminum

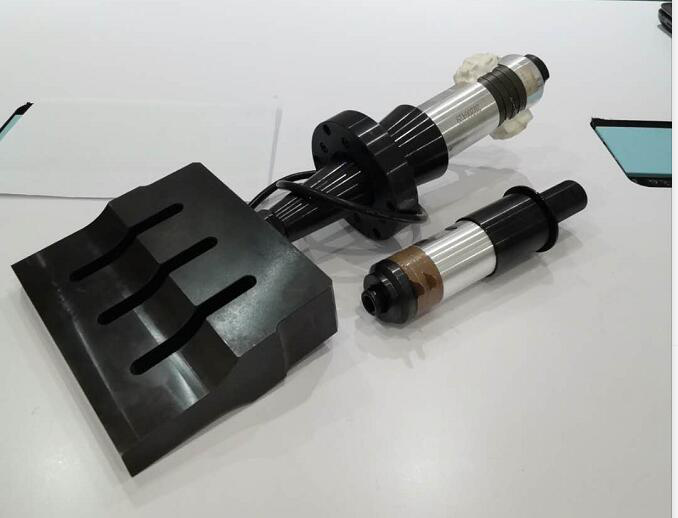

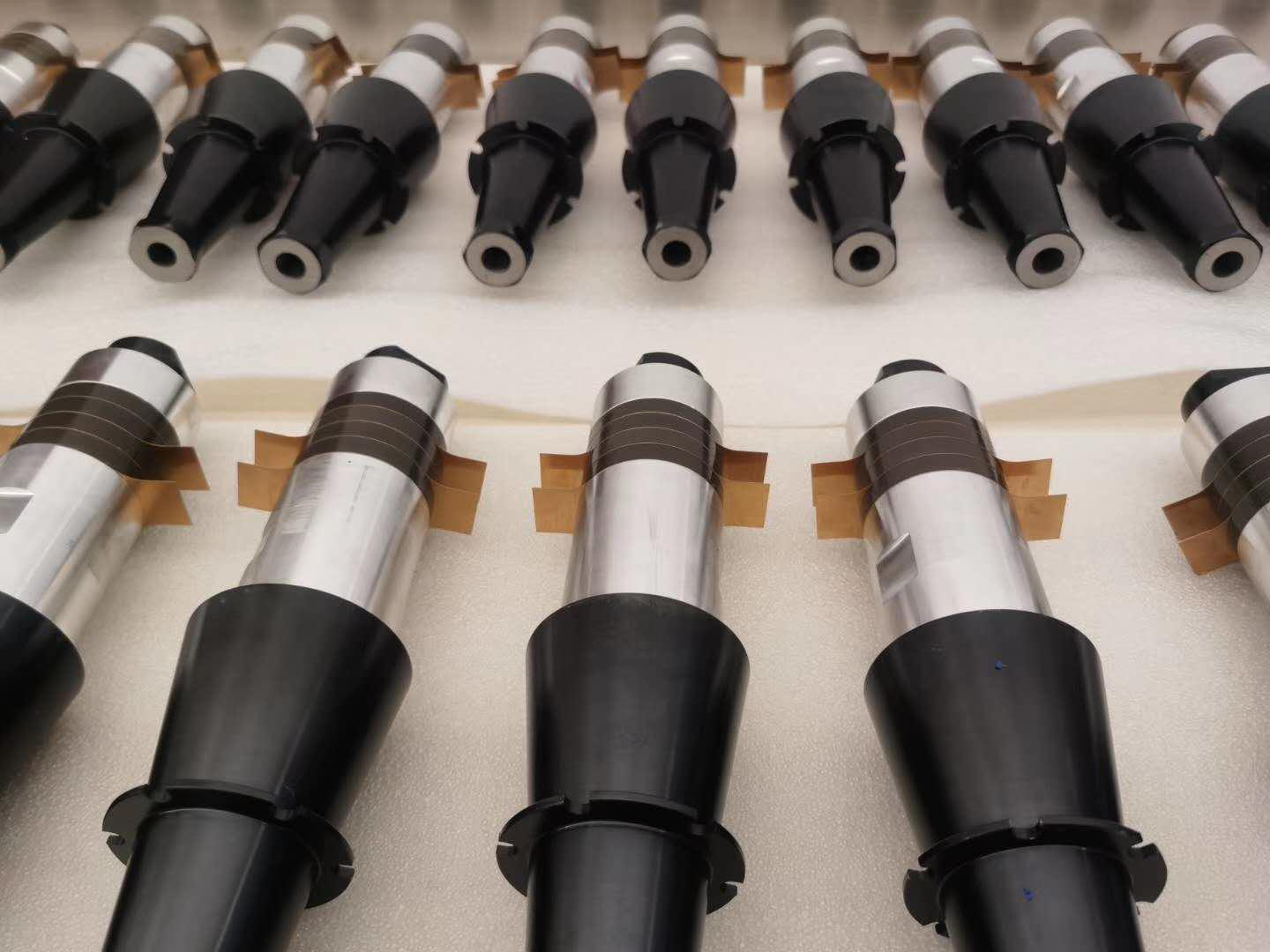

Ultrasonic Transducer+Booster

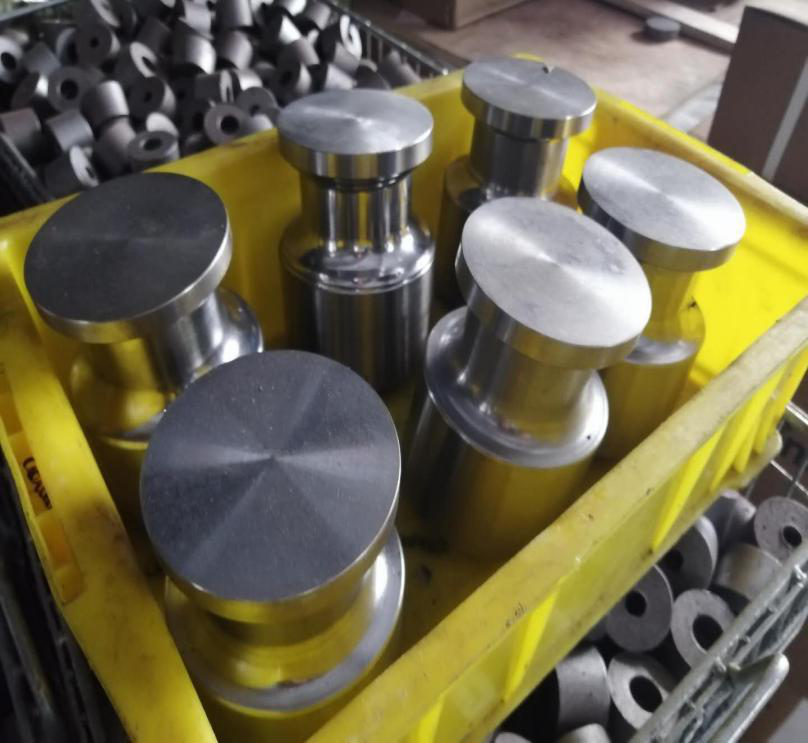

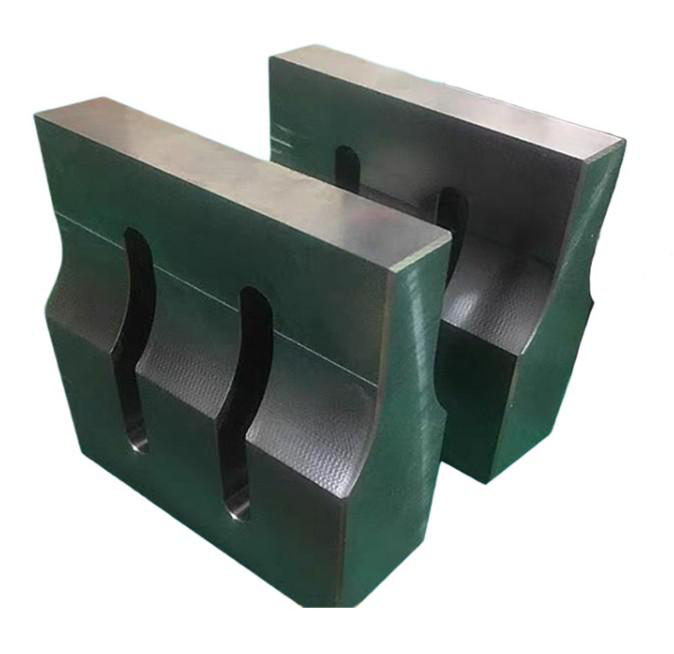

Horn

Horn size:
