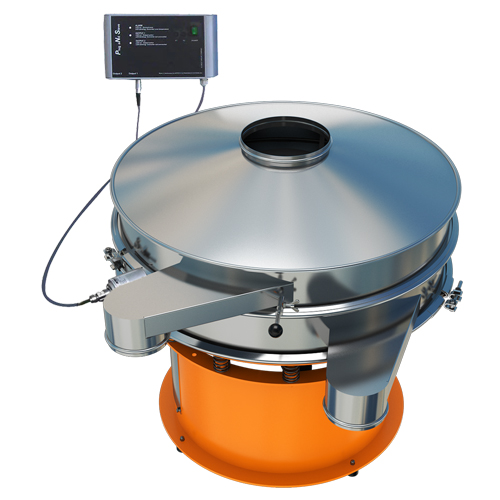

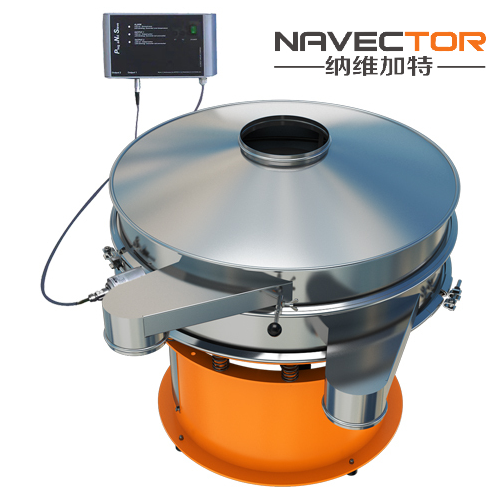

Ultrasonic Virbo Sifter
Featured industries served by the Ultrasonic Mesh Screens: Food & Beverage, Pharmaceuticals, Chemicals, Coatings, Ceramics, Metal Powders, Water Processing, Recycling.
The mesh screen on any sieve is the most critical component, ensuring you can rely on your sieving solution to safeguard the quality of your final products. Particularly when screening difficult powders or when screening on fine meshes, installing the Ultrasonic System within your sieve will eliminate blinding and blockages, increasing mesh life and maximizing your productivity. Navector Ultrasonic System can be easily retrofitted to any existing vibratory sieve including non-Navector equipment. We offer a range of mesh screen designs to suit all sizes and applications.When you specify a Navector Ultrasonic system, you get a great deal more than a high quality. High throughput piece of machinery manufactured to ISO 9002 Standards. L
We are committed to give our customer a fast, responsive and reliable support service that helps to keep production lines running. This means full technical support from our Sales Engineers and the availability of a complete range of spares, off-the-shelf.Full aware of the operational and competitive pressure you are likely to work under, we have made substantial investment in re-meshing services and stockholdings of spare parts to ensure your peace of mind. Navector original parts and meshes represent excellent value for money and allow units to operates trouble-free at optimum levels of performance.
Two Options for Ultrasonic Technology
This ultrasonic system has been designed so that it can be retrofitted onto any new or existing vibrating sieve/separator.
Ultrasonic Screening Features & Benefits
• Increase your sieving capacities up to 10 times by enabling powders to pass through screens faster
• Increase your mesh life by reducing screen overload and frequency of mesh cleaning
• Sieve on finer meshes (as low as 20μm) and obtain a better quality final product
• Eliminate mesh damage caused by mechanical deblinding systems
Data Sheet
Model |
Effective sieving diameter (mm) |
Effective sieving area(m2) |
Mesh Opening (mesh) |
Layers
(Max.) |
Vibration Motor |
||||
Power(KW/HP) |
RPM |
Centrifugal Force (newton) |
AMP |
Motor Weight(KG) |
|||||
NHIU16 |
340 |
0.0907 |
2-400 |
2 |
0.1/0.1341 |
1460 |
2500 |
0.4 |
24 |
NHIU24 |
540 |
0.2289 |
2-400 |
3 |
0.2/0.2682 |
1460 |
5000 |
0.8 |
32 |
NHIU32 |
730 |
0.4183 |
2-400 |
4 |
0.5/0.6705 |
1460 |
10000 |
1.37 |
49 |
NHIU40 |
900 |
0.6359 |
2-400 |
4 |
0.7/0.9387 |
1460 |
16000 |
1.96 |
60 |
NHIU48 |
1100 |
0.9499 |
2-400 |
5 |
1.5/2.0115 |
1460 |
25000 |
3.76 |
80 |
NHIU60 |
1400 |
1.5386 |
2-400 |
5 |
2/2.682 |
1460 |
40000 |
5.28 |
158 |
