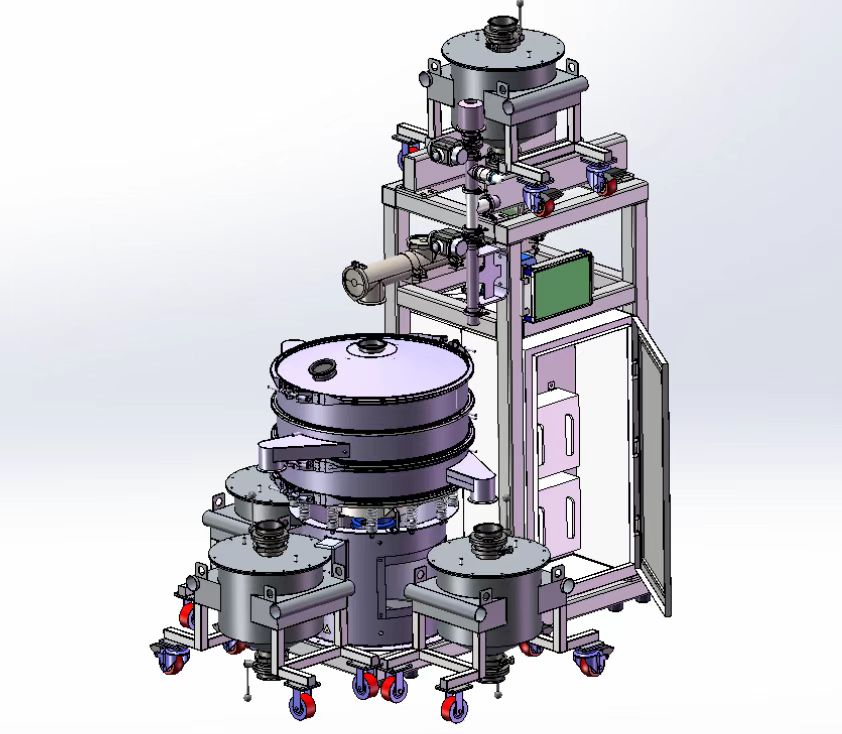

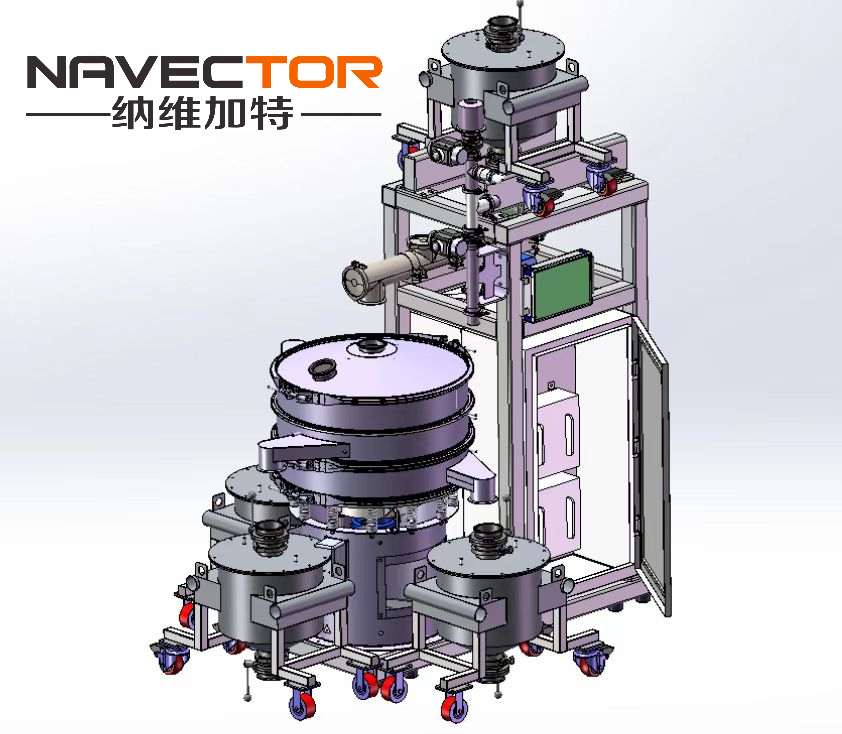

Gas Protection Screening Station

Equipment technical parameters:

1、Screen machine model : NHIU32B-S4C-P

2、Screening area: 0.5㎡x2

3、Screening output: about 60-100kg, taking 53um titanium powder as an example

4、Screening accuracy: ≥95%

5、Oxygen content of powder after sieving: less than 100ppm

6、Equipment structure: All contacts adopt a quick-release structure for easy cleaning and replacement.

7、Feeding bin and receiving bin: The bin can be customized according to customer needs

8、Feeding method: hydraulic vehicle feeding tank or vacuum loading

Environmental installation supporting requirements:

1. Gas requirements: It is recommended that argon purity >99.999% and conventional compressed air pressure 6MPa

2. Electricity: three-phase 380V 50HZ power 2KW

3. Space: 2 meters wide x 3 meters long x 3 meters high

4. Conveying: feeding hydraulic truck
