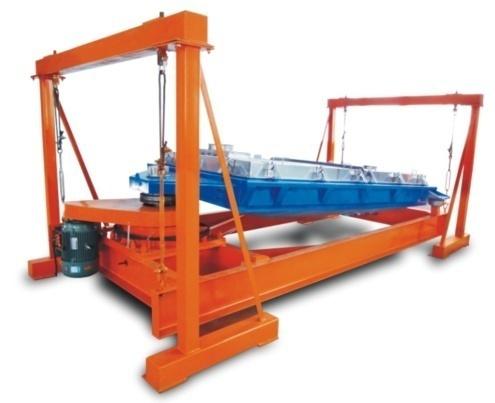

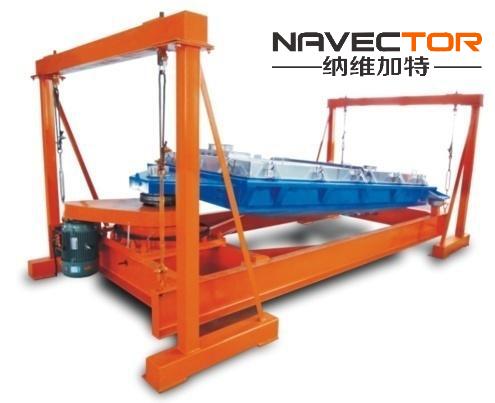

NPFS Gyratory Screeners

Navector Industrial Sifting Machine with larger capacity, higher precision,proven erformance, ease of maintenance

Classic Navector performance - quality
Industrial separation equipment, high output
Aggressive screen
Cleaning, long-lasting

Navector Industrial Sifting Equipments are designed and built to meet

Your specific requirements:

Low angle, Gyratory-Reciprocating Motion gently sifts the material
Multi deck Navector Sifters produce several grades of product in one machine
Totally enclosed with effective sealing for clean operation
Durable construction and wear-resistant impact areas for long life and continuous operation

Free material analysis

To help achieve highest yields with consistent on-spec product:

Free confidential laboratory testing
Comprehensive separation analysis
Easy-to-understand summary report
Our experienced Lab Technicians and Application Engineers will recommend the machine size,settings and screen openings to ensure accurate,efficient separations.

The Gyratory Reciprocating Motion gradually diminishes along the length of the machine to an elliptical path andfinally to a nearly straight line motion at the discharge end.

Industrial Sifting Machine Movement

Circular motion at the feed end
•Spreads the material across the full width of the screen surface
• Stratifies the material
• Aggressively conveys material forward

Changing to elliptical motion at the middle of the deck
• Long stroke elliptical action
•Enhances product stratification
• Conveys material at high capacity

Reciprocating motion at the discharge end
• Removes near-size particles
• Improves screening efficiency
• No vertical component ensures material is in constant contact with the screen surface

“ Navector screeners have proven themselves for years and years.They are the industry standard sifter for many applications. They arecost-effective and give me the separations I want and need.” our clients say.Over 6,100 Navector screeners are installed worldwide.

Data Sheet

Deck	Model	Sieve dimension *width Length** mm	Positive displacement stroke mm	Power kW	Rounds per min r/min	A mm	B mm	C mm	D mm	Weight kg
1	NPFS0515	500X1500	52	1.5	940	2235	700	730	810	350
1	NPFS1021	1000X2100	64	2.2	960	3280	960	1156	1200	960
1	NPFS1030	1000X3000	64	4	960	4485	1050	1156	1200	1100
1	NPFS1530	1500X3000	64	5.5	960	4236	1360	1778	1892	2300
1	NPFS1836	1800X3600	76	7.5	960	5305	1500	2180	2430	3600
1	NSFS2050	2000x5000	92	11	960	6770	1980	2245	2230	5000
2	NPFS0515	500X1500	52	1.5	940	2235	700	730	810	400
2	NPFS1021	1000X2100	64	2.2	960	3280	960	1156	1200	1080
2	NPFS1030	1000X3000	64	4	960	4485	1050	1156	1200	1230
2	NPFS1530	1500X3000	64	5.5	960	4236	1360	1778	1892	2600
2	NPFS1836	1800X3600	76	7.5	960	5305	1500	2180	2430	3900
2	NPFS2050	2000x5000	92	11	960	6770	1980	2245	2230	5200
3	NPFS0515	500X1500	52	1.5	940	2235	760	730	810	450
3	NPFS1021	1000X2100	64	2.2	960	3280	1050	1156	1200	1250
3	NPFS1030	1000X3000	64	4	960	4485	1080	1156	1200	1500
3	NPFS1530	1500X3000	64	5.5	960	4236	1460	1778	1892	3200
3	NPFS1836	1800X3600	76	7.5	960	5305	1560	2180	2430	4100
3	NPFS2050	2000x5000	92	11	960	6770	2040	2245	2230	5500
