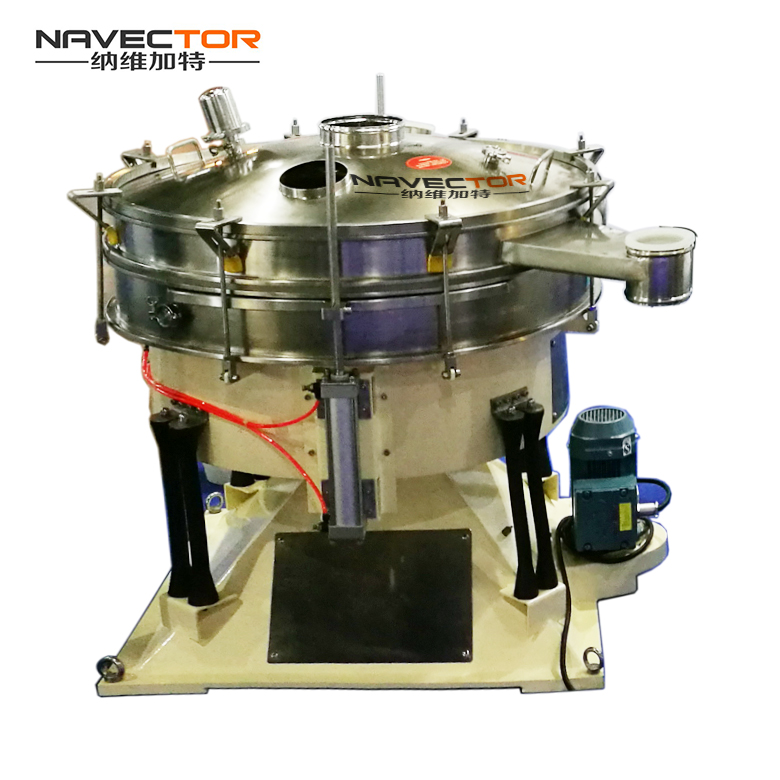

Ultimate Tumbler Screening Machines

Ultimate Tumbler Screening Machines

Basically the movement of a Tumbler Screening Machine can be compared to natural hand screening.For the control screening, fractionating and de-dusting of dry, powdered and granular products. Particularly suitable for high feed rates and multi-deck separations of fine, lightweight products which are difficult to screen.

Tumbler Screener Description

Tumbler sieve is a kind of evolving from artificial screen.The movement of circular motion and toss (upward parabolic movement) are fully embodied.By adjusting the Radial angle and Tangential angle to change the amplitude of circular motion and toss.Advanced technology and design for better performance in round screen !The motion of tumbler sieve is double pendulum movement that generated by ordinary vertical motor drives eccentric wheel.The material forms a regular gradually grounding parabolic motion by adjusting the radial angle and tangential angle.

Screening Features

• Modular, self-centering and expandable design
• Up to 7 separations simultaneously on each machine
• Slow speed and three-dimensional motion for optimal screening
• Delivered ready to operate and optimized for each product (Plug & Play)
• Up to 100% availibility in 24 h operation
• Low acceleration and low maintenance requirements, no product degradation
• Dustproof, CE compliant, FDA approved rubber and plastic materials
• Stainless steel 1.4301 intermediate rings and screen frame are standard
• Very competitively priced with short delivery times

Screener Data Sheet
Feed Sizes	20 μm – 20 mm
Feed Rates	1 kg/h – 50.000 kg/h
Bulk Densities	20 – 10.000 g/l
Mesh Openings	20 μm – 20 mm
Screens Usable	Stainless steel wire or perforated plates
No. of Decks	1 – 5
Mesh Cleaning	Jumping balls/rings, Rotating brush, Ultrasound
Speed Range	180 – 280 min–1
Screen Movement	3-dimensional, settable
Acceleration	1.3 – 1.8 g / 60 – 80 mm horizontal & 5 – 40 mm vertical
Materials	Carbon steel, stainless steels 304/316
Machine Surface Treatment	Painted, brushed or mirror polished

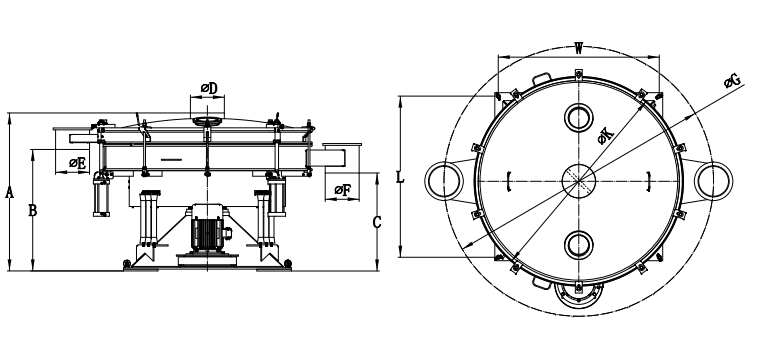

Parameter               Type	A	B	C	D	E	F	G	K	W	L	Power	Layer (highest)
1200	1236	904	757	φ250	φ200	φ200	1574	1210	1040	1040	1.1KW	3
1500	1457	1132	950	φ250	φ200	φ200	1940	1517	1122	1122	4KW	3
1800	1500	1132	950	φ300	φ300	φ300	2334	1817	1400	1400	4KW	3

Tumbler Screener Application

Pharmaceuticals

Chemicals

Ceramics

Coatings

Powder Metallurgy

Abrasive

Food
